Faure's Solar Power, Cambridge Ontario, Canada

Statistics

Current Time Stamp: 2026-04-10 16:00:38

Unit	Current Power Production	Total Energy Produced	Total Revenue *
South roof	1121 W or 28.74% of Max.(3900 W)	76881.3 kWH	$0
West roof	495 W or 27.97% of Max.(1770 W)	19975.18 kWH	$0
Combined	1616 W or 28.5% of Max. (5670 W)	96856.59 kWH	$0

Please Note *: Payments are based on meter readings, not accumulated data.
Info: 1462.4754

Unit	Average Energy			Peak Power Production	Peak Energy Produced
Unit	Weekly	Monthly	Yearly	Peak Power Production	Peak Energy Produced
South roof	1462 W	1235 W	1263 W	4068 W ( 1 times since connection )	33.458 kWH on 2017-05-08
West roof	551 W	412 W	417 W	1794 W ( 4 times since connection )	13.409 kWH on 2025-05-19
Combined	2014 W	1646 W	1680 W	5848 W ( 1 times since connection )	45.532 kWH on 2024-05-30

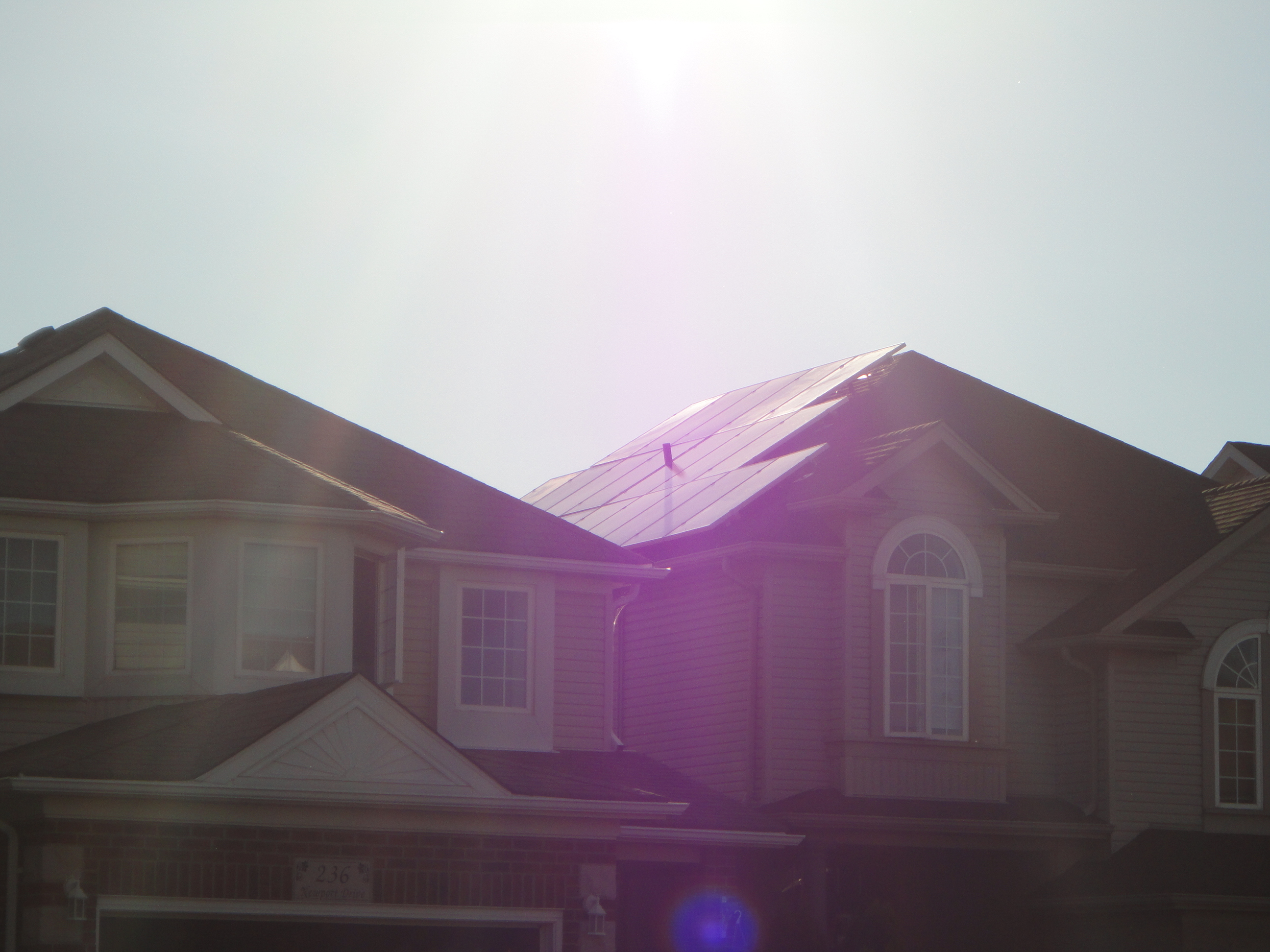

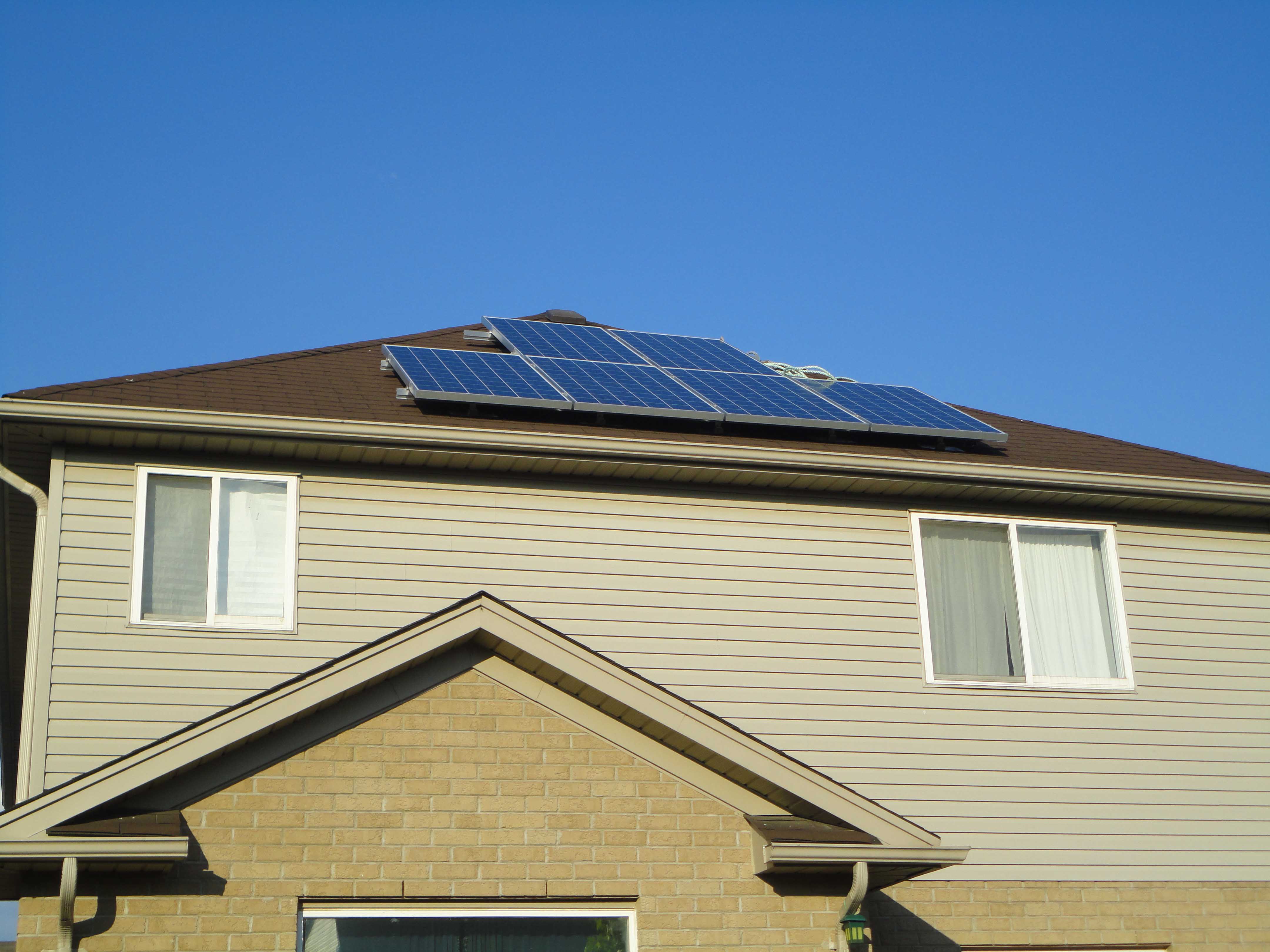

CAPACITY:: South Roof 5.37 kW (DC), 3.9 kW (AC) ( Picture ); ~~West Roof 1.47 kW (DC), 1.14 kW (AC) ( Picture )~~; Update:2023-05: West Roof 2.04 kW (DC), 1.77 kW (AC) ( Picture )
SOLAR PANELS:: 24 Conergy P235 panels @ 235W each; 4 Conergy P240 panels @ 240W each. Added 2013-06-17
INVERTER:: Three Micro-Inverters from Enphase and one SMA Sunny Boy 4kW; Mirco-inverter from Enphase failed and was replaced 2016-05-20
SHADING:: No
STANDBY POWER?:: No
PROJECT DEVELOPER:: Natural Power Products: http://npp.ca/; Arcadian Projects: https://arcadianprojects.ca/

MONITORING SYSTEM:

Dual Solution will be used. Each Inverter will provide their own soluation. I will provide an aggregate solution.

Micro-Inverters will be monitored by Enlight by Enphase: https://enlighten.enphaseenergy.com/

SMA will be monitored by the SMA Sunny Portal: http://www.sunnyportal.com/

Aggregate data will be available here: http://philserver.faure.ca/

SELL POWER:

Ontario MicroFIT $0.802/kWh

LOCATION:

Cambridge, Ontario Canada

INSTALLED:

Solar system and monitoring went live on July 25, 2011.

Extra 4 panels were added 2013-06-17 to boost DC power to inverter.

Due to squirrel issues, the West array was replaced with 6 panel of 340W each - 2023-05-25
